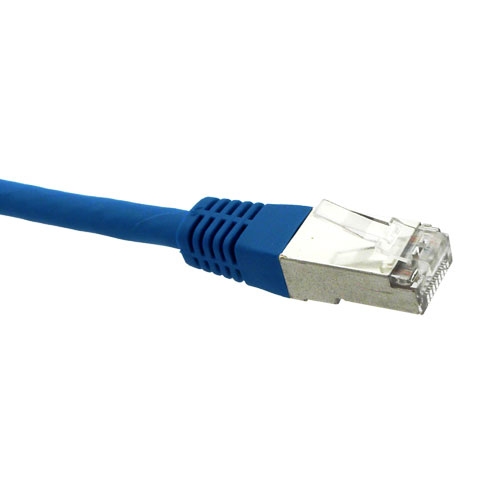

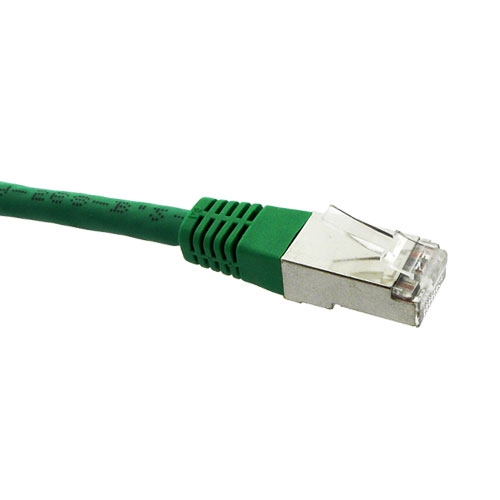

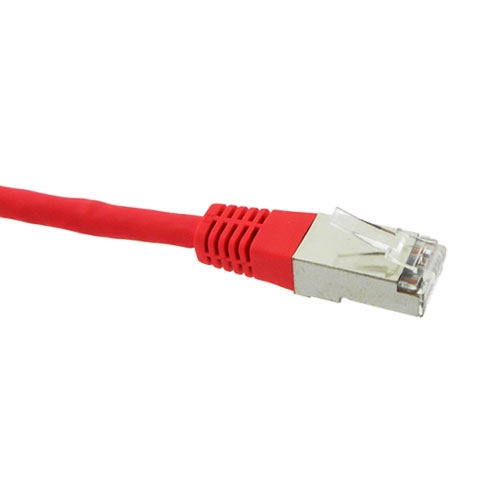

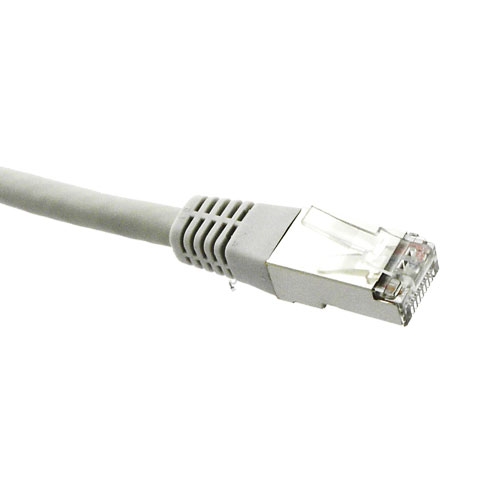

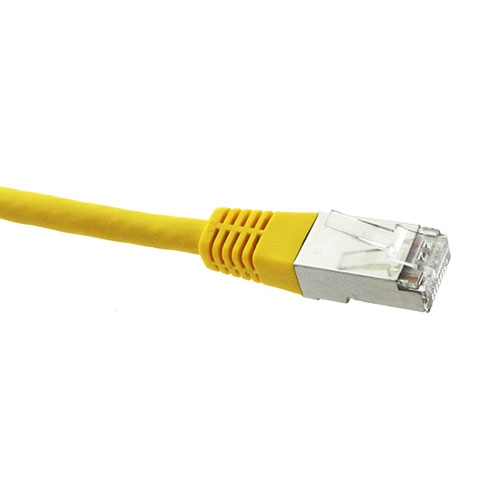

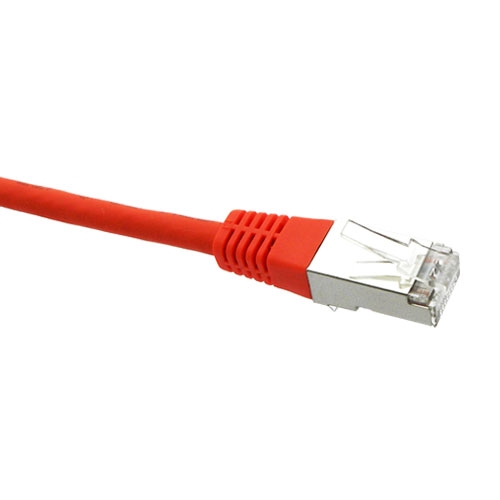

Black Box GigaTrue® Premium CAT6 patch cables are constructed to exceed ANSI/TIA industry standards, ensuring optimal performance in bandwidth-intensive Gigabit Ethernet applications and guaranteeing the transmission of your voice, data, audio/video and/or PoE signals.
Tested to 550-MHz and 1-Gbps performance, these cables exceed the 250-MHz CAT6 spec, greatly reducing impedance, structural return loss and near-end crosstalk (NEXT).
A robust four-pair 24-AWG construction features 50-micron gold-plated contacts for superior conductivity, and LSZH rated jacketing that limits emission of smoke and corrosive gases in the event of a fire.
These cables have connectors designed for the insertion and extraction life of 750 cycles, making for an ultra-reliable solution that you can count on to perform.

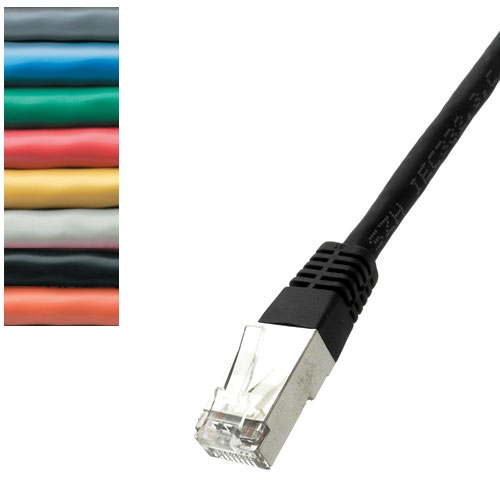

Available in a variety of lengths and colors, Black Box’s GigaTrue line of cabling gives you the flexibility to build your install however you want.
Approvals RoHS, CE Standards TIA/EIA-568-C.2 Category 6 Connector 1 RJ-45 Male Connector 2 RJ-45 Male Connector Plating 50u Cable Jacket Type LSZH Cable Type Stranded Conductor Gauge 26 AWG Shielded S/FTP Snagless Connector No Frequency Up to 550 MHz Attenuation (Maximum)
39.4dB at 250 MHz,
62.1dB at 550MHz Impedance 100+/-15 ohms NEXT (Minimum)
38.3db at 250MHz,
33.1dB at 550MHz PS-NEXT (Minimum)
36.3dB at 250MHz,
31.2dB at 550MHz Return Loss (Minimum)
15.3dB at 250MHz,
2.98dB at 550MHz
