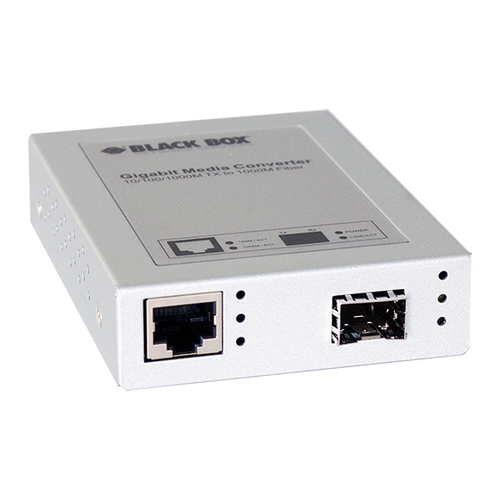

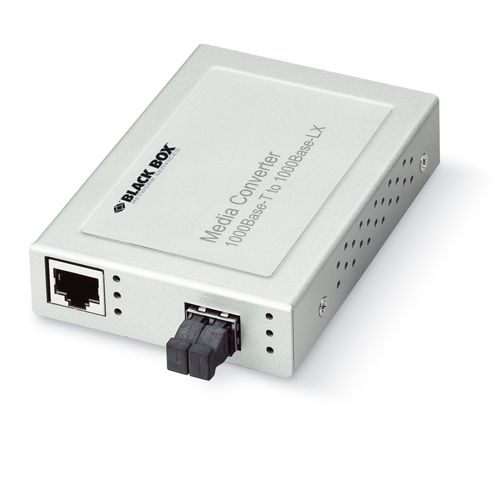

XS 1000 Converter
Photo may vary from actual product


XS 1000 Converter


Gigabit Media Conversion at an affordable cost!


  • Bridge a 1000BASE-TX signal to a 1000BASE-SX/LX signal.
  • Compliant with IEEE 802.3u 1000BASE-T and IEEE 802.3z 1000BASE-SX/LX Gigabit Ethernet Standards.
  • TP port can support Full-Duplex, Auto-MDI/MDI-X and Auto-negotiation.
  • Fibre port available with Multimode SC, Single-mode SC or flexible SFP-slot.
  • SFP slot can support either Single-Mode or Multimode SFP Modules.
  • Diagnostic LED indications.
  • Optionally, DIN-Rail or Wall mountable.
  • Expandable into 19" XS Media Conversion System.

Share |
  Product       Code   Unit price
Multimode
(1) 1000 Mbps RJ45
(1) 1000BaseSX MM SC
SC
220m/550m

AC
  XS 1000 Converter
XS 1000 Converter
  LMCS212AE-SC-R2   Sign in to view prices
Singlemode
(1) 1000 Mbps RJ45
(1) 1000BaseLX SM SC
SC
10km

AC
  XS 1000 Converter
XS 1000 Converter
  LMCS212AE-SC10-R2   Sign in to view prices
dep. on SFP
(1) 10/100/1000 Mbps RJ45
(1) SFP (1000M)
dep. on SFP
dep. on SFP

AC
  XS 1000 Converter
XS 1000 Converter
  LGE217AE   Sign in to view prices

Accessories

  Product     Code   Unit price

Power Supply
  XS Media Converter System Spare Power Supply
XS Media Converter System Spare Power Supply
  LME1601E   Sign in to view prices
Rack/Mount Kit
  DIN rail mounting kit for LMCS2xx and LGE217
DIN rail mounting kit for LMCS2xx and LGE217
  LGE200-DIN   Sign in to view prices
  Kit for wall mounting LMCS2xx and LGE217
Kit for wall mounting LMCS2xx and LGE217
  LGE200-WALL   Sign in to view prices
  XS Media Converter System - 19" chassis, 16 slots, 95–260 VAC
XS Media Converter System
  LME1600E   Sign in to view prices
  SFP 1250-Mbps Fiber with Extended Diagnostics - 850nm MM LC, 550m
SFP 1250-Mbps Fiber with Extended Diagnostics
  LFP411   Sign in to view prices
  SFP 1250-Mbps Fiber with Extended Diagnostics - 1300nm MM LC, 2km
SFP 1250-Mbps Fiber with Extended Diagnostics
  LFP412   Sign in to view prices
  SFP 1250-Mbps Fiber with Extended Diagnostics - 1310nm SM LC, 10km
SFP 1250-Mbps Fiber with Extended Diagnostics
  LFP413   Sign in to view prices
  SFP 1250-Mbps Fiber with Extended Diagnostics - 1310nm SM LC, 30km
SFP 1250-Mbps Fiber with Extended Diagnostics
  LFP414   Sign in to view prices
