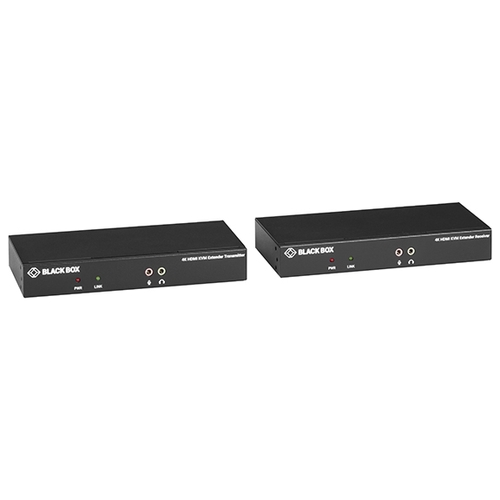

KVX Series KVM Extender over CATx - 4K, Single/Dual-Head, HDMI, USB 2.0, Serial, Audio, Local Video

The KVX HDMI KVM Extender lets you control a server or computer over a standard CAT5 or CAT6 UTP network cable connection at distances of up to 328 feet (100 meters). PC connection cables are included with this product, making it a solution that is ready to use right out of the box.

You can use your existing keyboard, mouse, and monitor to access both the server room and your office computer, saving space and avoiding the need for a dedicated remote console. KVX is the perfect low-cost solution for transportation control centers, medical facilities, industrial warehouses, and extended workstations.

KVX Series Extenders also includes local video allowing access local monitor(s) at the Transmitter side. Perfect for any situation that requires monitoring of connected PCs.

KVX is TAA compliant and backed by free lifetime technical support.

KVX is a perfect fit for cost-conscious users in search of a feature-rich solution allowing them to operate servers or PCs from remote locations. Or, customers who require control of systems that are physically inaccessible, placed in secure locations, or in otherwise harsh environments. This can include command and control operations, server management, distribution monitoring, or utilities process control centers.

Operating System —OS Independent

Distance —CATx cable: Up to 100 m

Resolution —Maximum: 4K @ 30 Hz, 3840 x 2160 @ 30 Hz

DDC Support —DDC, DDC2, DDC2B

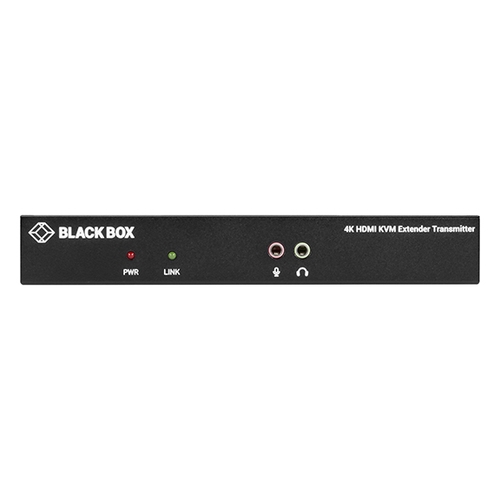

Indicators —(1) Power LED (red), (1) Link LED (green)

MTBF—
Transmitter (TX): 137,540 Hours
Receiver (RX:) 165,620 Hours

• Using MIL-HDBK-217F (N2) Parts Count Prediction Calculator
• Environment condition which is GB (Ground Benign: Business and Scientific computers included in this Environment)

Connectors —

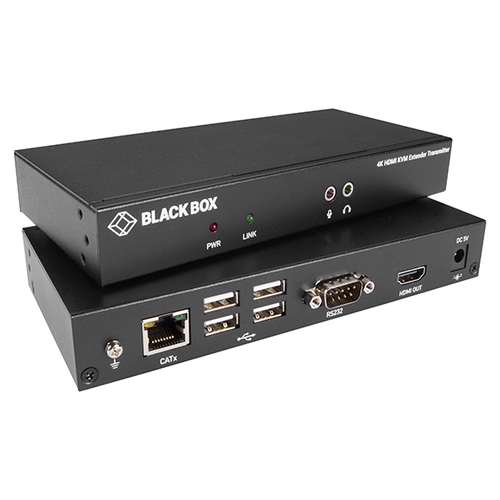

KVXLCH-100
Host connection:
Video Input: (1) HDMI female;
Serial Control Port: (1) DB9 female;
Link Port: (1) RJ-45 female;
USB: (1) USB Type B female;
Audio: (1) Line in, (1) Line out;
Local Video Output: (1) HDMI female

Receiver Console connection:
Video Output: (1) HDMI female;
Serial Control Port: (1) DB9 male;
Link Port: (1) RJ-45 female;
USB: (4) USB Type A female;
Audio: (1) Mic In, (1) Speaker Out

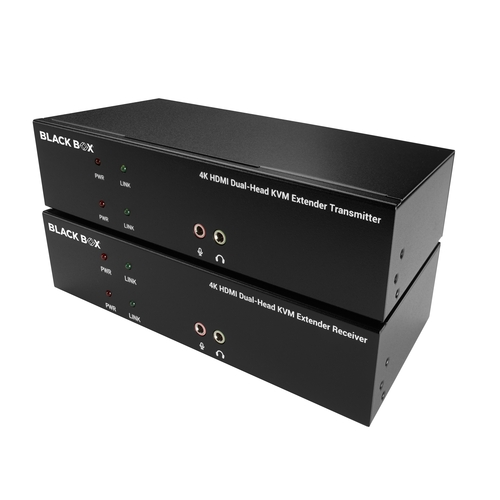

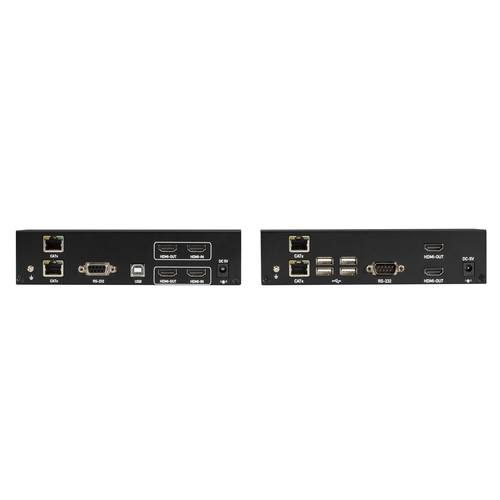

KVXLCH-200
CATX TRANSMITTER
Host connection:
Video Input: (2) HDMI female;
Serial Control Port: (1) DB9 female;
Link Port: (2) RJ-45 female;
USB: (1) USB Type B female;
Audio: (1) Line in, (1) Line out;
Local Video Output: (2) HDMI female

CATX RECEIVER
Console connection:
Video Output: (2) HDMI female;
Serial Control Port: (1) DB9 male;
Link Port: (2) RJ-45 female;
USB: (4) USB Type A female;
Audio: (1) Mic In, (1) Speaker Out

Power — External 5-VDC, 2-A Power Supply

Dimensions —
Receiver: 2.7H x 8.3W x 18D cm
Transmitter: 2.1H x 8.3W x 18D cm

Weight —
Receiver: 0.378 kg
Transmitter 0.372kg

Housing Material —Metal Chassis

Environmental —
Operating Humidity: 0 to 80%, noncondensing
Operating Temperature: 0 to 50° C
Storage Temperature: -20 to +60° C

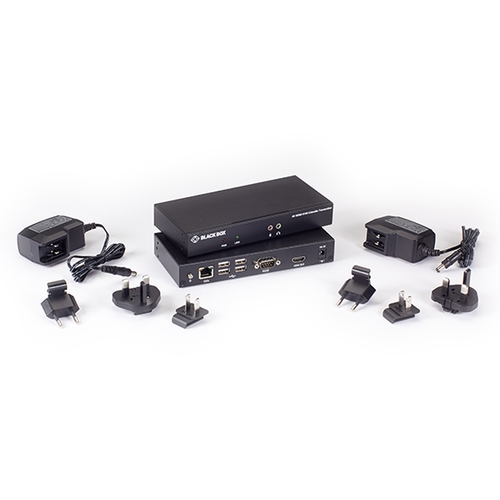

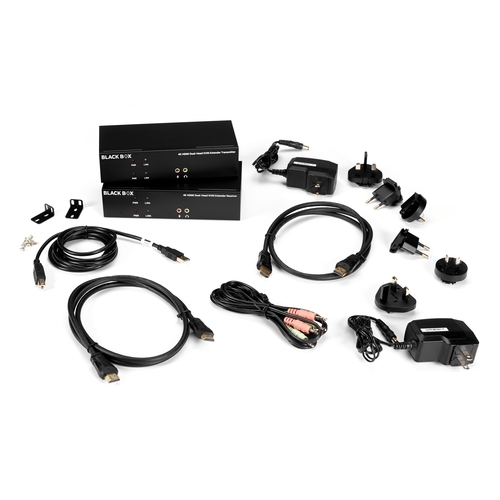

(1) Transmitter
(1) Receiver
(2) 5V, 2A Power Supplies (includes US, EU, UK plug types)
(1) HDMI cable 1.2m (4 ft.)
(1) 3.5mm audio cable 1.8m (6 ft.)
(1) USB-B to USB-A cable 1.8m (6 ft.)
(2) Deskmounting brackets (with screws)
