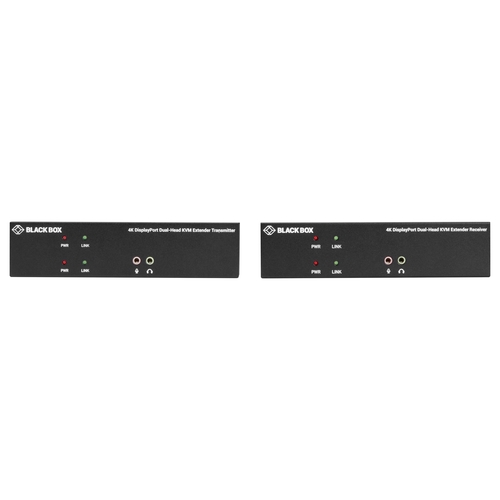

The KVX Dual-Head KVM Extender lets you control a server or computer over a standard CAT5 or CAT6 UTP network cable connection at distances of up to 330 feet (100 meters). This extender also supports 4K video. PC connection cables are included with this product, making it a solution that is ready to use right out of the box.
You can use your existing keyboard, mouse, and monitor to access both the server room and your office computer, saving space and avoiding the need for a dedicated remote console. KVX Dual Head is the perfect low-cost solution for transportation control centers, medical facilities, industrial warehouses, and extended workstations.
KVX Dual Head is equipped with an RS-232 serial channel that connects to a serial terminal or to serial devices, such as touchscreens and barcode scanners. It eliminates the need for traveling back and forth between the local computer and remote console, making it an efficient and flexible solution.
KVX Dual Head also includes local video, allowing access to an additional monitor at the transmitter side. It's perfect for any situation that requires monitoring of connected PCs. This extender is TAA compliant and backed by a 2-year warranty as well as free lifetime technical support.
KVX Dual Head is ideal for applications that require the console to be in a conveniently accessible location while the system equipment needs to reside in a safe place - away from dust, dirt, and harsh environmental influences. It also provides a cost-effective way of keeping sensitive data, such as financial and personal information, safe in a heavily secured data center while still allowing remote access to users.
Resolution— 3840 x 2160 @ 30Hz
Audio Support— 2-Way Analog Audio
Cable— CAT5e/CAT6
Extending Distance— [b]100m
[b]DDC Support— DDC, DDC2, DDC2B
Indicators—
Power: Red
Link: Green
Connectors—
Transmitter / Host connection:
Video Input: (2) DisplayPort female
Serial Control Port: (1) DB9 female
Link Port: (2) RJ45 (Female);
USB: (1) USB Type B female
Audio: (1) Line in, (1) Line out;
Local Video Output: (2) DisplayPort female
Receiver/Console connection:
Video Output: (2) DisplayPort female
Serial Control Port: (1) DB9 male
Link Port: (2) RJ45 (Female);
USB 2.0: (4) USB Type A female
Audio: (1) Mic In, (1) Speaker Out
Power— External DC 5V / 2A Power Supply
Operating Temperature— 0 to 50° C
Storage Temperature— -20 to 60° C
Housing Material— Metal Chassis
Dimensions— each unit: 4.4 x 18.0 x 8.3 cm
Weight— each unit: 0.381 kg
(1) Transmitter
(1) Receiver
(2) 5V, 2A Power Supplies (Includes US, EU, AU & UK Plug types)
(2) DisplayPort Cables 1.2m (4 ft.)
(1) USB Type A To B Cable, Male/Male 1.8m (6 ft.)
(1) 3.5mm Dual Audio/Mic Cable, Male/Male 1.8m (6 ft.)
|
|
