Butikk startside > KVM Svitsjer og Forlengere > Enterprise KVM Svitsjer > Emerald® KVM over IP Matrix Switch, 10GbE, 28-Port
EMS10G28: KVM over IP, 10G, (28) SFP+ 1/10G + (2) QSFP28 100G
Produkt kan variere for aktuelt produkt
EMS10G28: KVM over IP, 10G, (28) SFP+ 1/10G + (2) QSFP28 100G
EMS10G28: KVM over IP, 10G, (28) SFP+ 1/10G + (2) QSFP28 100G
EMS10G28: KVM over IP, 10G, (28) SFP+ 1/10G + (2) QSFP28 100G

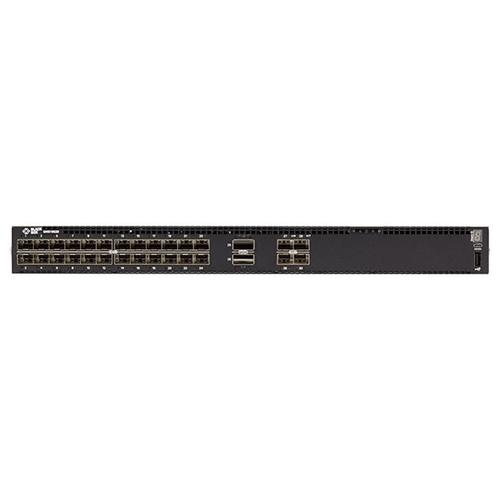

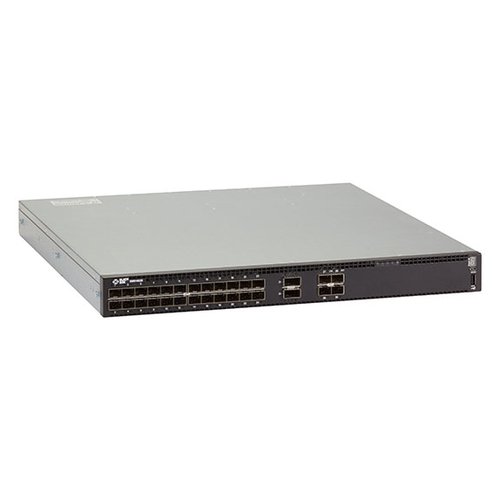

Emerald® KVM over IP Matrix Switch, 10GbE, 28-Port

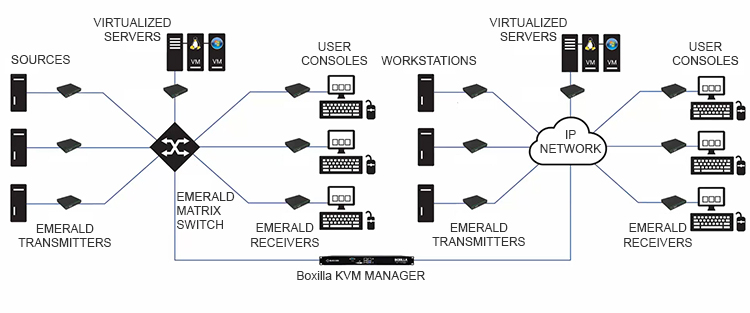

Create a free configurable KVM over IP Switching Matrix and Extension system connecting your Emerald transmitters and receivers via IP


  • Use with any type of Emerald transmitters and receivers to create a powerful KVM over IP Switching Matrix.
  • 1RU high-density 10-Gigabit switch.
  • 28 ports 10Gbps SFP+ and 2 ports 100Gbps QSFP28.
  • 960-Gbps (full-duplex) non-blocking, cut-through switching fabric delivers line rate performance under a full load.
  • Supports 10G SFP+ transceivers.

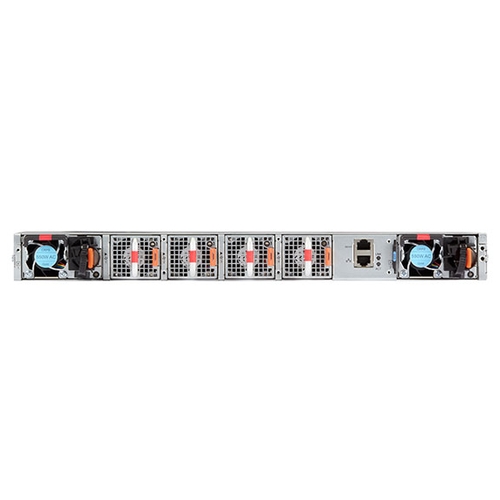

  • Redundant, hot-swappable power supplies and fans.
  • Scalable L2 and L3 Ethernet Switching with QoS, ACL and a full complement of standards based IPv4 and IPv6 features including OSPF, BGP and PBR.
  • Garanti: 2 Year Double Diamond™ Warranty (Standard)

Share |
  Produkt       Kode   Enhetspris   Stock   Antall
KVM over IP
10G

(28) SFP+ 1/10G + (2) QSFP28 100G
  Emerald® KVM over IP Matrix Switch, 10GbE, 28-Port
Emerald® KVM over IP Matrix Switch, 10GbE, 28-Port
  EMS10G28
På forespørsel

Please contact our Sales department.

Tilbehør

  Produkt     Kode   Enhetspris   Stock   Antall

  SFP+, 10-Gbps - LC, MM 850nm, 300m
SFP+, 10-Gbps
  LSP441
kr 702,00
  99+
  SFP+, 10-Gbps - LC, Single-mode 1310nm, 20km
SFP+, 10-Gbps
  LSP442
kr 1 122,00
  22
  QSFP+ Transceiver - 40GBASE-SR4, 850-nm Multimode Fiber - MPO, 850-nm MM, 150m
QSFP+ Transceiver - 40GBASE-SR4, 850-nm Multimode Fiber
  QSFP541
kr 1 199,00
  0
  SFP+ 10-Gbps Direct Attach Cable (DAC) - Cisco SFP-H10GB-CUxxM Compatible - 0.5m
SFP+ 10-Gbps Direct Attach Cable (DAC) - Cisco SFP-H10GB-CUxxM Compatible
  SFP-H10GB-CU50CM-BB
På forespørsel
  47
  SFP+ 10-Gbps Direct Attach Cable (DAC) - Cisco SFP-H10GB-CUxxM Compatible - 1m
SFP+ 10-Gbps Direct Attach Cable (DAC) - Cisco SFP-H10GB-CUxxM Compatible
  SFP-H10GB-CU1M-BB
På forespørsel
  42
  QSFP28 100Gbps Active Optical Cable (AOC) – Cisco SFP-100G-AOCxM Compatible - 3m
QSFP28 100Gbps Active Optical Cable (AOC) – Cisco SFP-100G-AOCxM Compatible
  QSFP-100G-AOC3M-BB
kr 5 609,00
  40
  QSFP28 100Gbps Active Optical Cable (AOC) – Cisco SFP-100G-AOCxM Compatible - 10m
QSFP28 100Gbps Active Optical Cable (AOC) – Cisco SFP-100G-AOCxM Compatible
  QSFP-100G-AOC10M-BB
kr 6 027,00
  25
  SFP+ 10Gbps Active Optical Cable (AOC) – Cisco SFP-10G-AOCxM Compatible - 5m
SFP+ 10Gbps Active Optical Cable (AOC) – Cisco SFP-10G-AOCxM Compatible
  SFP-10G-AOC5M-BB
kr 997,00
  30
  SFP+ 10Gbps Active Optical Cable (AOC) – Cisco SFP-10G-AOCxM Compatible - 10m
SFP+ 10Gbps Active Optical Cable (AOC) – Cisco SFP-10G-AOCxM Compatible
  SFP-10G-AOC10M-BB
På forespørsel
  30
Rack/Mount Kit
  Rackmount Kit for Emerald 4K (1 or 2 units)
Rackmount Kit for Emerald 4K (1 or 2 units)
  EMD4000-RMK1
kr 1 397,00

  Rackmount Bracket (1 unit in 1U)
Rackmount Bracket (1 unit in 1U)
  DTX1000-RMK1
På forespørsel

  Rackmount Bracket (2 units in 1U)
Rackmount Bracket (2 units in 1U)
  DTX1000-RMK2
På forespørsel

Option/Software/Firmware
  Spare Bundle for EMS10G28 with 2 power supplies, 4 fans
Spare Bundle for EMS10G28 with 2 power supplies, 4 fans
  EMS10G28BUN
På forespørsel

  Emerald® Replacement Power Supply for the EMS10G28 Emerald Switch
Emerald® Replacement Power Supply for the EMS10G28 Emerald Switch
  EMS10G28PS
På forespørsel

  SFP+, 10-Gbps, RJ-45 - 30m, RJ-45, CATx
SFP+, 10-Gbps, RJ-45
  LSP443
kr 2 244,00
  7
  SFP+, 10-Gbps, 850-nm MM LC, 300-m - 850nm MM LC, 300m
SFP+, 10-Gbps, 850-nm MM LC, 300-m
  LSP421
På forespørsel
  15
  SFP+, 10-Gbps, 1310-nm SM LC, 10-km - 1310nm SM LC, 10km
SFP+, 10-Gbps, 1310-nm SM LC, 10-km
  LSP422
På forespørsel
  64
  SFP+, 10-Gbps, Extended Temp., 850-nm MM LC, 300-m - 850nm MM LC, 300m
SFP+, 10-Gbps, Extended Temp., 850-nm MM LC, 300-m
  LSP431
kr 1 969,00
  7
  QSFP28, 100-Gbps, WDM Single-mode - 10km, LC Duplex, OS1 WSM
QSFP28, 100-Gbps, WDM Single-mode
  QSFP442
kr 44 860,00
  0
  QSFP28, 100-Gbps, OM4, MPO - 70m, MPO, OM3
QSFP28, 100-Gbps, OM4, MPO
  QSFP441
kr 5 950,00
  0
  Emerald® SE DVI KVM-over-IP Extender Receiver - Single-Head, V-USB 2.0, Audio, Virtual Machine Access - (1) Single link DVI-D, 4x V-USB 2.0, audio, VM-access, Receiver
Emerald® SE DVI KVM-over-IP Extender Receiver - Single-Head, V-USB 2.0, Audio, Virtual Machine Access
  EMD2000SE-R
På forespørsel

  Emerald® SE DVI KVM-over-IP Extender Transmitter - Single-Head, V-USB 2.0, Audio - (1) Single link DVI-D, 4x V-USB 2.0, audio, Transmitter
Emerald® SE DVI KVM-over-IP Extender Transmitter - Single-Head, V-USB 2.0, Audio
  EMD2000SE-T
På forespørsel

  Emerald® SE DVI KVM-over-IP Extender Receiver - Dual-Head, V-USB 2.0, Audio, Virtual Machine Access - (2) Single link DVI-D, 4x V-USB 2.0, audio, VM-access, Receiver
Emerald® SE DVI KVM-over-IP Extender Receiver - Dual-Head, V-USB 2.0, Audio, Virtual Machine Access
  EMD2002SE-R
På forespørsel

  Emerald® SE DVI KVM-over-IP Extender Transmitter - Dual-Head, V-USB 2.0, Audio - (2) Single link DVI-D, 4x V-USB 2.0, audio, Transmitter
Emerald® SE DVI KVM-over-IP Extender Transmitter - Dual-Head, V-USB 2.0, Audio
  EMD2002SE-T
På forespørsel

  Emerald® DisplayPort KVM over IP Matrix Switch - 4K60Hz - USB 2.0, Audio - (1) DisplayPort 1.2 (4K60), 4x USB transparent, audio, Receiver
Emerald® DisplayPort KVM over IP Matrix Switch - 4K60Hz - USB 2.0, Audio
  EMD4000R
På forespørsel

  Emerald® DisplayPort KVM over IP Matrix Switch - 4K60Hz - USB 2.0, Audio - (1) DisplayPort 1.2 (4K60), 4x USB transparent, audio, Transmitter
Emerald® DisplayPort KVM over IP Matrix Switch - 4K60Hz - USB 2.0, Audio
  EMD4000T
På forespørsel

  ControlBridge Touch Panel - 7"
ControlBridge Touch Panel
  CB-TOUCH7-T
På forespørsel

  ControlBridge Touch Panel - 12"
ControlBridge Touch Panel
  CB-TOUCH12-T
På forespørsel

  Freedom II KVM Switch - 4 ports
Freedom II KVM Switch
  KV0004A-R2
kr 7 039,00
  99+
