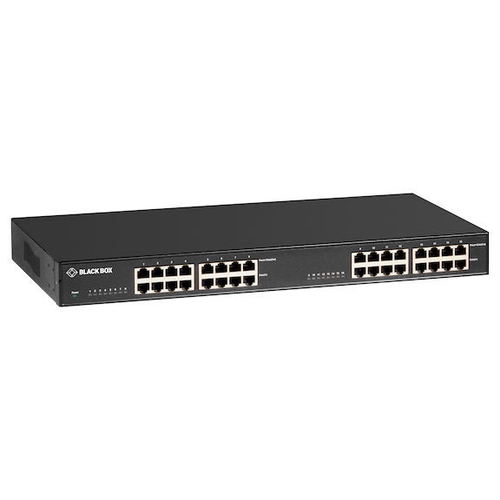

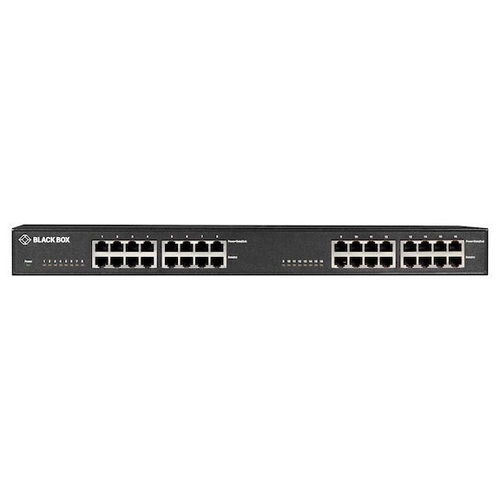

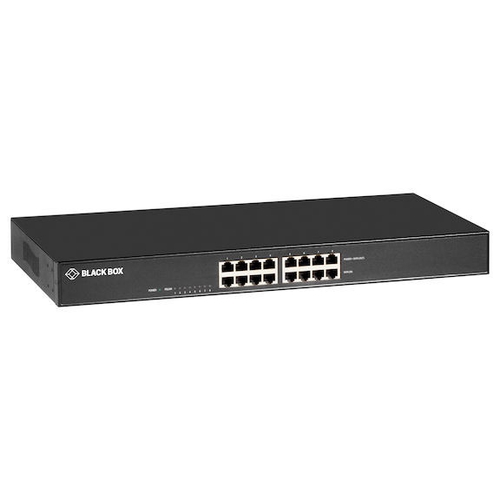

The Black Box PoE+ midspan injectors are used in Enterprise applications to power VoIP phones, wireless access points, IP security cameras and more. PoE+ injectors add power to the Ethernet link and will help you avoid upgrading non-PoE switch infrastructure. PoE enables you to avoid installing AC power at a remote powered device.
Compliance — CE, RoHS 2, cUL/UL®
Speed — 10/100/1000-Mbps
Load (Maximum) —
LPJ001-A-T-R2: 30W;
LPJ008-A-T-R2: 250W;
LPJ016A-T-R2: 500W
Connectors —

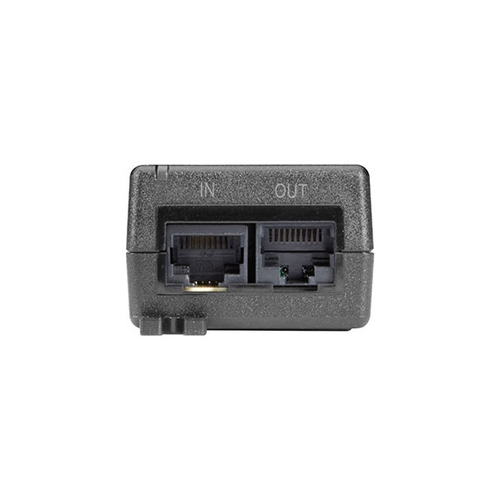

Data in: (1), (8) or (16) RJ-45 (10/100/1000);
Data/PoE out: ((1), (8) or (16) RJ-45 (10/100/1000);
Power —

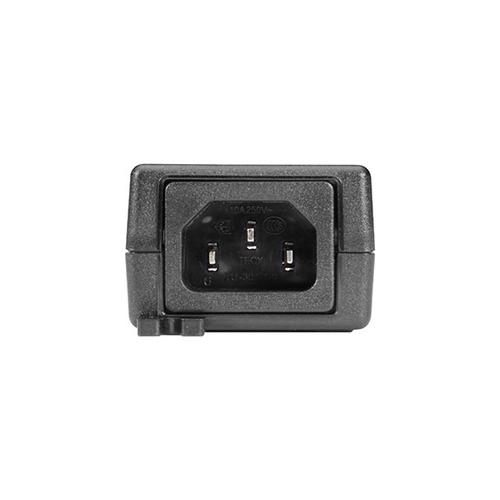

AC input voltage range: 90–264 VAC;
AC input voltage rating: 100–240 VAC, 47–63 Hz;
Max PoE output per port : 30W
Regulation —Line and load: 54–57 VDC under all conditions
Size —

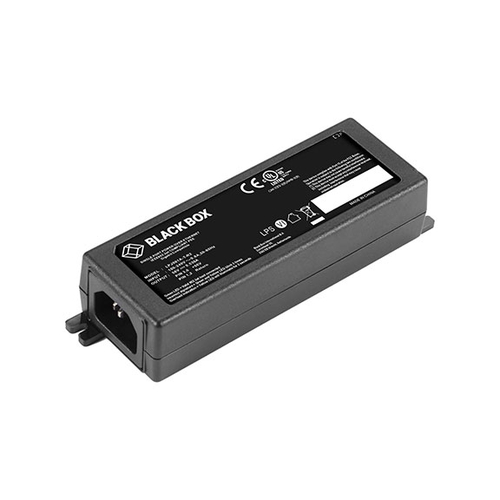

LPJ001A-T-R2: 2.8x 4.6 x 14 cm
LPJ008A-T-R2, LPJ016A-T-R2: 4.6 x 43.9 x 21.8cm
Weight —
LPJ001A-T-R2: 0.2 kg
LPJ008A-T-R2: 2.7 kg
LPJ016A-T-R2: 3.2 kg
Environmental —
Humidity: 5 to 90%
Operating temperature: -10°C to +40°C (14°F to 104°F)
Storage temperature: -20°C to +70°C (-4°F to 158°F)
