Guide to Keyboard, Video and Audio connectors
DVI

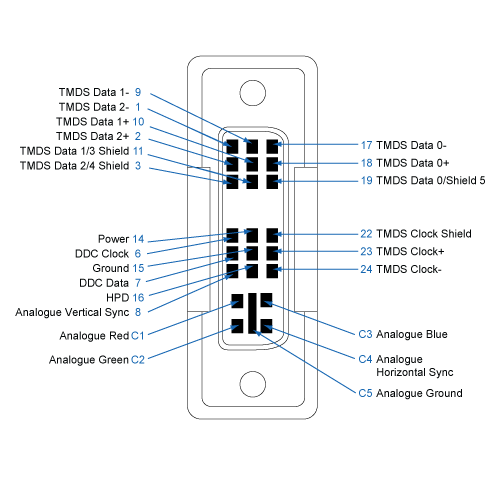

DVI-I Single Link
See pinning diagram

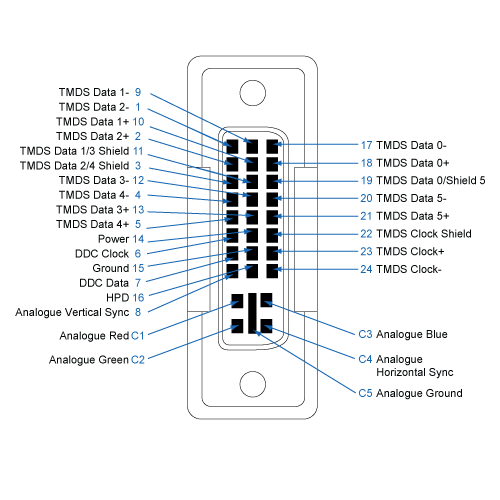

DVI-I Dual Link
See pinning diagram

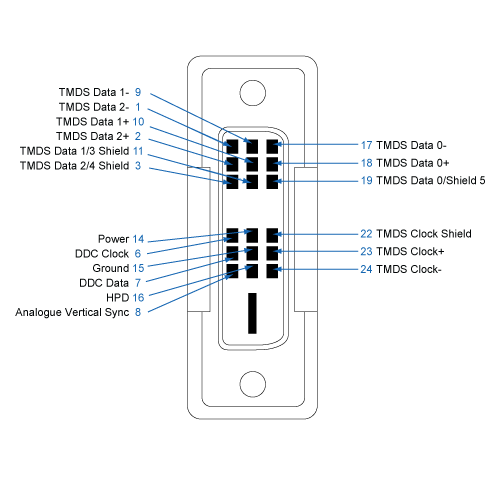

DVI-D Single Link
See pinning diagram

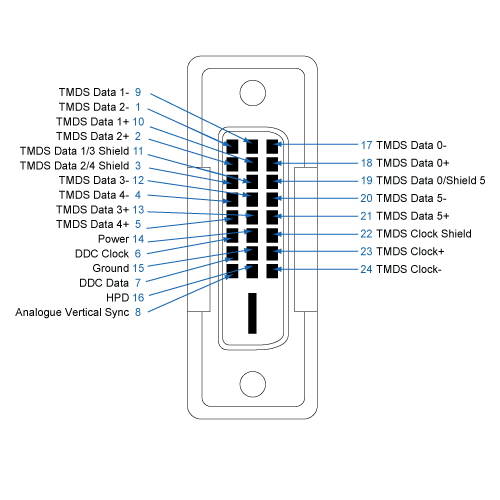

DVI-D Dual Link
See pinning diagram

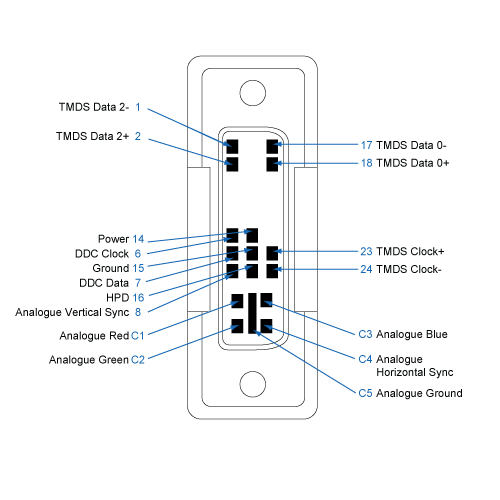

DVI-A
See pinning diagram
DisplayPort

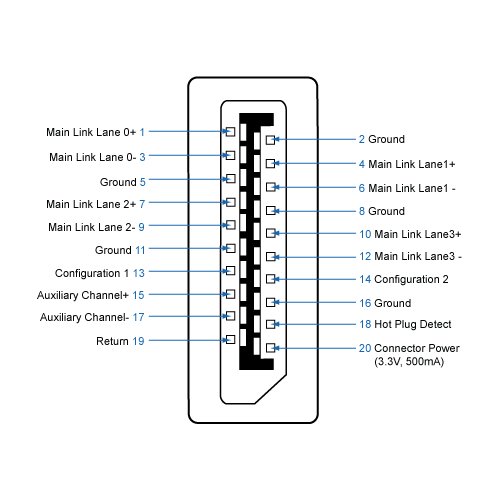

DisplayPort
See pinning diagram

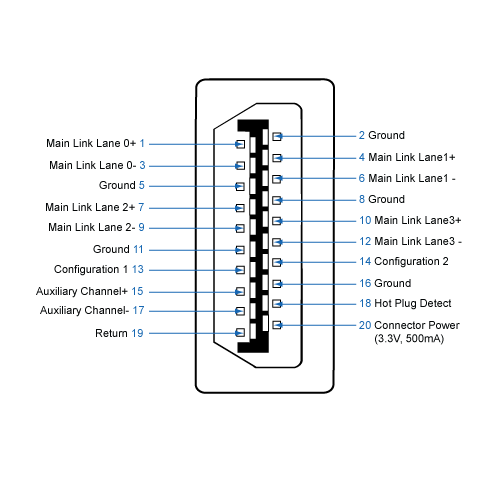

Mini DisplayPort
See pinning diagram
HDMI

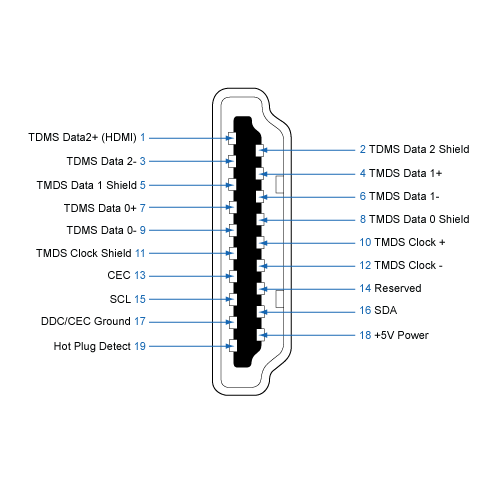

HDMI
See pinning diagram

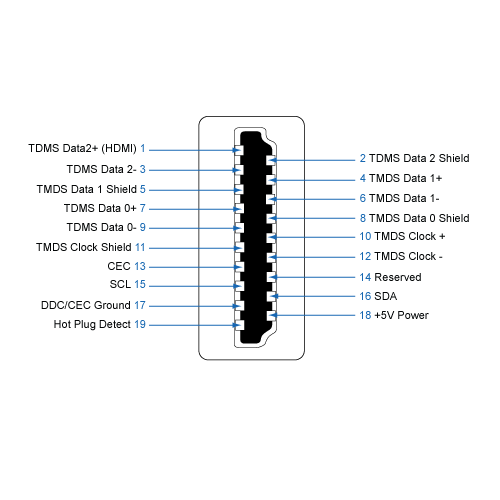

Micro HDMI
See pinning diagram
Miscellaneous

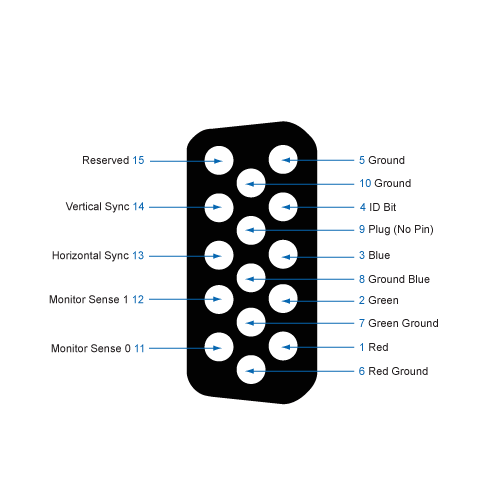

VGA (HD15)
See pinning diagram
S-Video
See pinning diagram
TOSLINK
RCA
BNC
F-Type Coax
NOTE: Images are not to scale.
